Machine Introduction:

1. The SDSK2515V5-BT30 model is a large 2.5-meter high-speed precision carving machine specially designed for customers; Fixed beam gantry structure; The movement mode is to move the Y-axis workbench forward and backward, the X-axis to move left and right, and the Z-axis to move up and down< Br/>
2.   The body adopts a top-notch granite (marble) structure that never deforms; Equipped with a Taiwan Shengjie 16 bit UFO style tool library, with a tool changing speed of 2 seconds, greatly improving production efficiency; Three axis adopts imported Taiwan Shangyin precision linear guide rail, Taiwan TBI; Grinding grade ball screw, German coupling, servo motor, distribution cabinet thermostatic system, advanced spindle refrigeration system, automatic lubrication system, water circulation coolant spray and spray system, air filter device, ensure higher processing accuracy, speed and stability< Br/>
3. Especially suitable for precision highlight, engraving and milling, and tapping processing of various types of steel, copper, aluminum, acrylic, plastic and other parts< Br/>
4. Additionally, a fourth rotary shaft, side milling head, and probe function can be added< Br/>
5. The main door can be equipped with a pneumatic double opening door, which can be connected to the automatic loading and unloading mechanism of a six axis robot for installation< Br/>




&Nbsp& Nbsp& Nbsp& Nbsp;

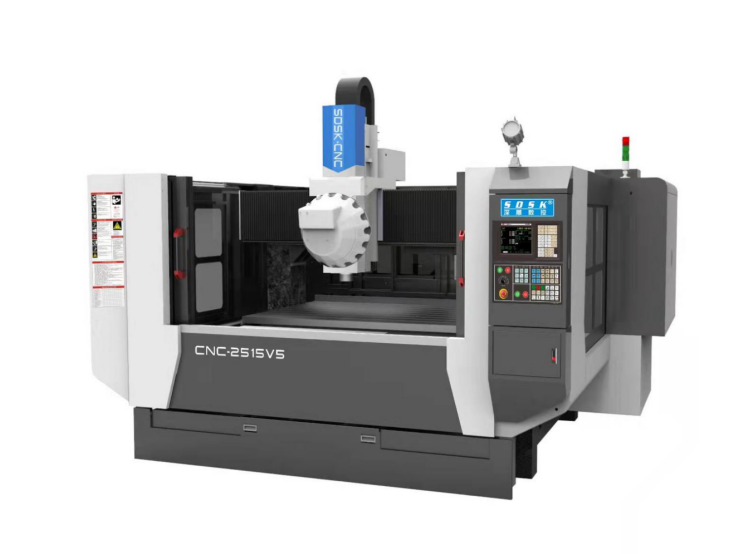

(The pictures are for reference only, subject to the actual product)











2、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
Deep carving CNC system (Frankish technical foundation)/XY2.9KW, Z1.8KW servo motor/7.5KW spindle servo drive
full set
Beijing
Use Taiwan Shangyin/Intime for XYZ axis& Nbsp; Precision ball linear guide;
full set
Taiwan
Taiwan TBI for XYZ axis; Precision grinding grade ball screw
full set
Taiwan
Electric spindle (models BT30/7.5-125); 24000rpm (or 30000rpm), 7.5KWOuter diameter 125mm, with flange, positioning groove, and encoder
1 unit
Foshan
16 bit UFO style tool library; (Taiwan Shengjie)
1 set
Taiwan
Marble (granite) bed
1 set
Shandong Province
Cast iron mechanical parts
1 batch
self-control
Outer cover: 2mm steel plate, powder coating (both front and rear have stainless steel water tanks)
full set
self-control
Distribution cabinet constant temperature system (Reid)
1 set
Dongguan;
Schneider Electrical Accessories (Schneider)
1 batch
Tianjin
Import; TBI; P-grade angular contact paired bearings
full set
Taiwan
Spindle water cooler (Reid)
1 unit
Dongguan
Electronic handwheel (Yupu)
1 set
Guangzhou
Knife setting instrument (Shenzhen Jingdiao )
1 unit
self-control
X/Y/Z axis equipped with three proof cloth organ cover (Y can choose steel plate cover separately)
1 set each
self-control
X/Y/Z axis plastic drag chain (Dingtai)
1 set each
Dongguan
Automatic lubrication oil pump (Proton)
1 set
Dongguan
Air filter (Japanese Lehman M107-A air filter)
2 sets
Zhejiang
Water pump (Snell)
1 set
Changzhou
Machine tool accessories
1 set
Shenzhen
BT30 Knife Handle/Complete Set of Reduced Nipple (Three in One)
5
Shenzhen
Double screw+1 chain plate automatic slag discharge machine; (Optional)
nothing
self-control


3、 Main technical parameters of the equipment: (unit: mm)
model
SDSK2515V5-BT30
External dimensions
4350 * 4000 * 2900
Aluminum workbench size XY
2500 * 1500 (T-slot M12)
Gantry width
two thousand five hundred and sixty
Spindle nose end to countertop
Maximum 556 to minimum 116
Tool magazine to workbench
Min 420
X/Y/Z stroke
X: 2550

Y: 1550

Z: 450
Maximum fast moving speed XYZ
X: 28 meters per minute

Y: 48 meters per minute

Z: 40 meters per minute
Maximum processing speed
12 meters per minute
control system
Deep carving CNC system
servo system
AC servo
System resolution
zero point zero zero one
Three axis verticality
0.015mm
Whole machine positioning accuracy
&Plusmn; 0.015mm
Localization accuracy
300mm& Plusmn; 0.01mm
Repetitive positioning accuracy
0.005mm
Number of spindles
1 unit
Electric spindle power
7.5KW
Electric spindle torque
11.9N. m
UFO type tool magazine
16 bit
Knife changing method
automatic
Spindle speed
24000rpm/min
Clamping tool handle
BT30
Knife alignment method
automatic
The countertop bears a load
1500Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
17KW
Overall weight
About 10000kg


4、 Standard configuration and accessories for the host:
one
Controller
eleven
1 mechanical, electrical, and operation manual
two
Electric spindle BT30-125-24000
twelve
Rigid tapping function
three
Automatic lubrication system
thirteen
Electrical box heat exchanger
four
Adjustable foundation cushion block
fourteen
Operation Manual, Program Manual, and User Manual
five
Toolbox
fifteen
5 BT30 blade heads (including rivets and wrenches)
six
Work lights
sixteen
BT30 locking tool holder
seven
Warning lights
seventeen
&Nbsp; M12 Ma Tie
eight
Spindle blowing device
eighteen
&Nbsp;
nine
transmission line
nineteen
Lock Mouth; ER32 (4-12)  1 set
ten
Semi enclosed cover
twenty
Shield
5、 Machine environment and hardware facilities requirements:
Number
Environmental projects
Project Requirements Standards
one
Power requirements
AC380V (4P) 50-60Hz, air switch 60A, power supply voltage fluctuation range 380V± Within 10%
two
air compressor
Using screw compressor, air storage tank, three-stage filtration,≥ 0.55Mpa, flow rate≥ 100L/min
three
Vacuum pressure
&Ge; 0.6 MPa
four
Air dryer
Must have an air dryer with automatic drainage function
five
Environmental noise/vibration
&Le; 75dba
six
Ground requirements
The ground is required to be flat, stable, and the difference between the highest and lowest points should not exceed 5mm
seven
Environmental humidity
Suggest 45% -65%
eight
Gas moisture content
No moisture
